library(gonogo)
library(ggplot2)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union

Basic Settings

In this article, an example of Go/Nogo design based on ORR is demonstrated. First we need some settings:

nmax <- 40
n1 <- 20
eff_cut <- 0.55
fut_cut <- 0.45
fa_eff_pt <- 0.6
fa_fut_pt <- 0.5

The total sample size at final analysis is 40.
The sample size at interim analysis is 20.
The efficacy boundary of ORR is 0.55.
The futility boundary of ORR is 0.45.
The (posterior) probability target/threshold of efficacy is 0.6. We declare efficacy if Pr(ORR > 0.55 | Data) > 0.6.
The (posterior) probability target/threshold of futility is 0.5. We declare futility if Pr(ORR < 0.45 | Data) > 0.5.

About our hypothetical product, we have the following information:

tpp_tb <- tibble::tribble(
    ~theta, ~tpp,
    0.45, "SOC",
    0.55, "TPP base",
    0.60, "TPP best"
)
theta_pick <- c(0.45, 0.5, 0.55, 0.6)    # theta(underlying ORR) we might be interested

So the efficacy of current SOC is 0.45, our TPP base is 0.55 and TPP best is 0.6.

Interim Analysis

We can list all possible results at interim analysis:

m_vec <- 0 : n1
res <- BM_Res(
    nmax = nmax, n1 = n1, m = m_vec,
    pt = fa_eff_pt, theta0 = eff_cut,
    eff_cut = eff_cut, fut_cut = fut_cut,
    a = 1, b = 1
)

knitr::kable(format(res, visable = FALSE))

nmax	n1	ORR	CI	Post_mean	HDI	Go_pprob	Nogo_pprob	Pred_prob
40	20	0(0.00)	0.00 - 0.17	0.05	0.00 - 0.13	0.0%	100.0%	0.0%
40	20	1(0.05)	0.00 - 0.25	0.09	0.00 - 0.21	0.0%	100.0%	0.0%
40	20	2(0.10)	0.01 - 0.32	0.14	0.02 - 0.28	0.0%	99.9%	0.0%
40	20	3(0.15)	0.03 - 0.38	0.18	0.04 - 0.34	0.0%	99.7%	0.0%
40	20	4(0.20)	0.06 - 0.44	0.23	0.07 - 0.40	0.1%	98.7%	0.0%
40	20	5(0.25)	0.09 - 0.49	0.27	0.10 - 0.46	0.4%	96.1%	0.0%
40	20	6(0.30)	0.12 - 0.54	0.32	0.13 - 0.51	1.3%	90.4%	0.0%
40	20	7(0.35)	0.15 - 0.59	0.36	0.17 - 0.56	3.8%	80.3%	0.3%
40	20	8(0.40)	0.19 - 0.64	0.41	0.21 - 0.61	9.1%	65.9%	1.9%
40	20	9(0.45)	0.23 - 0.68	0.45	0.25 - 0.66	18.4%	48.8%	7.5%
40	20	10(0.50)	0.27 - 0.73	0.50	0.30 - 0.70	32.1%	32.1%	21.0%
40	20	11(0.55)	0.32 - 0.77	0.55	0.34 - 0.75	48.8%	18.4%	43.0%
40	20	12(0.60)	0.36 - 0.81	0.59	0.39 - 0.79	65.9%	9.1%	67.4%
40	20	13(0.65)	0.41 - 0.85	0.64	0.44 - 0.83	80.3%	3.8%	86.0%
40	20	14(0.70)	0.46 - 0.88	0.68	0.49 - 0.87	90.4%	1.3%	95.7%
40	20	15(0.75)	0.51 - 0.91	0.73	0.54 - 0.90	96.1%	0.4%	99.1%
40	20	16(0.80)	0.56 - 0.94	0.77	0.60 - 0.93	98.7%	0.1%	99.9%
40	20	17(0.85)	0.62 - 0.97	0.82	0.66 - 0.96	99.7%	0.0%	100.0%
40	20	18(0.90)	0.68 - 0.99	0.86	0.72 - 0.98	99.9%	0.0%	100.0%
40	20	19(0.95)	0.75 - 1.00	0.91	0.79 - 1.00	100.0%	0.0%	100.0%
40	20	20(1.00)	0.83 - 1.00	0.95	0.87 - 1.00	100.0%	0.0%	100.0%

In this table, we have number of observed responders, observed ORR, 95% CI based on Clopper-Pearson method, posterior mean of ORR, 95% HDI of ORR, posterior probability of efficacy given current data, posterior probability of futility given current data, and the predictive probability of “Declare efficacy at FA” given current data.

ia_eff_pt <- 0.5
ia_fut_pt <- 0.01

ia_rules <- Find_Cut(
    nmax = nmax, n1 = n1, m = m,
    pt = fa_eff_pt, theta0 = eff_cut,
    eff_cut = eff_cut, fut_cut = fut_cut,
    eff_pt = ia_eff_pt, fut_pt = ia_fut_pt,
    a = 1, b = 1
)

If we set the rules to Go if predictive probability greater than 0.5 and to Nogo if predictive probability less than 0.01. Then we can determine the cut value for Go/Nogo as:

Declare Go if #resp is equal to or greater than 12, which means observed ORR >= 0.6. The predictive probability of “Pr(ORR > 0.55 | Data) > 0.6 at 40 subjects” is 67.4%.
Declare Nogo if #resp is equal to or less than 7, which means observed ORR <= 0.35. The predictive probability of “Pr(ORR > 0.55 | Data) > 0.6 at 40 subjects” is 0.3%.

Given this rule, we can compute the operating characteristics (OC) table for various observed ORR

oc_tab_s1 <- t(sapply(theta_pick, function(orr, n, go_cut, nogo_cut){
    res <- ORR_Go_Nogo(n = n, orr = orr, go_cut = go_cut, nogo_cut = nogo_cut)
    res <- format(res, visable = FALSE)
},
n = n1,
go_cut = as.integer(ia_rules["go_cut"]),
nogo_cut = as.integer(ia_rules["nogo_cut"])))

knitr::kable(oc_tab_s1)

Underlying_ORR	Pr_Go	Pr_Nogo	Pr_Equivocal
45.00%	13.1%	25.2%	61.7%
50.00%	25.2%	13.2%	61.7%
55.00%	41.4%	5.8%	52.8%
60.00%	59.6%	2.1%	38.3%

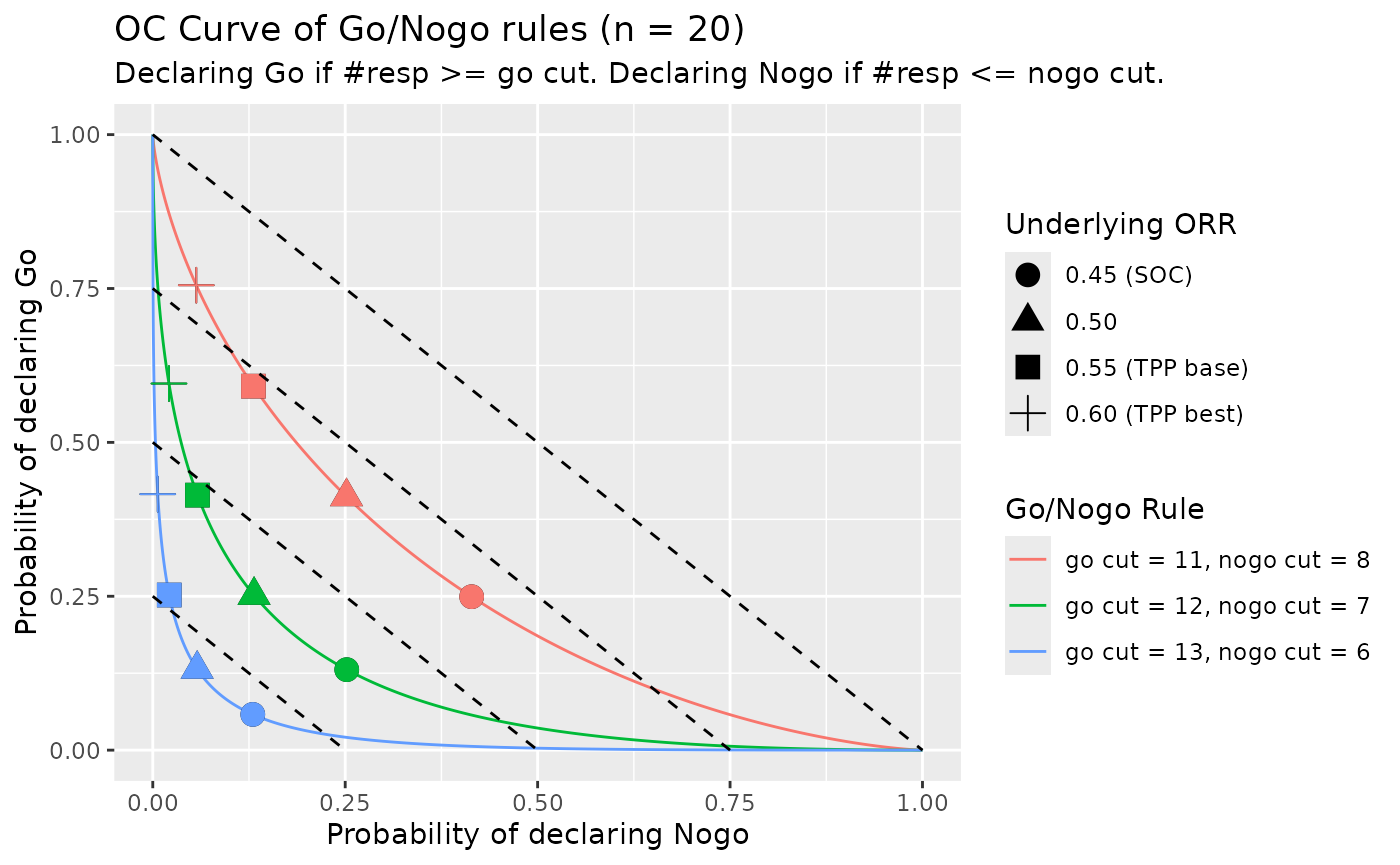

We can also show OC figures of different rules

rules <- data.frame(
    gocut = c(ia_rules["go_cut"] - 1, ia_rules["go_cut"] + 1),
    nogocut = c(ia_rules["nogo_cut"] + 1, ia_rules["nogo_cut"] - 1),
    n = n1
) %>%
    mutate(nogocut = if_else(
        nogocut < gocut, nogocut, gocut - 1
    )) %>%
    bind_rows(
        data.frame(
            gocut = ia_rules["go_cut"],
            nogocut = ia_rules["nogo_cut"],
            n = n1)) %>%
    distinct() %>%
    arrange(gocut)

oc_fig_s1 <- OC_Curve_Diff_Rules(rules, theta_pick,
                                 tpp_tb = tpp_tb,
                                 plot_params = list(
                                     contour_vec = seq(from = 0.25, to = 1, by = 0.25)))
oc_fig_s1

Full Monitoring Table

Based on Predictive Probability

enroll_num_vec <- 1 : n1
res <- matrix(NA, nrow = n1 + 1, ncol = n1)
colnames(res) <- paste0("enroll_", seq(n1))
rownames(res) <- paste0("#resp_", seq(n1 + 1) - 1)
for(enroll_num in seq(n1)){
    for(row_idx in seq(from = 1, to = enroll_num + 1)){
        resp_num <- row_idx - 1
        pred_prob <- gonogo:::pred_prob2(nmax = nmax, n1 = enroll_num, m = resp_num,
                                         pt = fa_eff_pt, theta0 = eff_cut)
        res[row_idx, enroll_num] <- pred_prob
    }
}
knitr::kable(round(res, digits = 3))

	enroll_1	enroll_2	enroll_3	enroll_4	enroll_5	enroll_6	enroll_7	enroll_8	enroll_9	enroll_10	enroll_11	enroll_12	enroll_13	enroll_14	enroll_15	enroll_16	enroll_17	enroll_18	enroll_19	enroll_20
#resp_0	0.187	0.077	0.030	0.011	0.004	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
#resp_1	0.691	0.407	0.216	0.105	0.048	0.020	0.008	0.003	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
#resp_2	NA	0.834	0.598	0.381	0.220	0.117	0.057	0.026	0.011	0.004	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
#resp_3	NA	NA	0.913	0.742	0.542	0.358	0.216	0.120	0.061	0.029	0.012	0.005	0.002	0.001	0.000	0.000	0.000	0.000	0.000	0.000
#resp_4	NA	NA	NA	0.955	0.843	0.679	0.500	0.336	0.208	0.118	0.061	0.029	0.013	0.005	0.002	0.001	0.000	0.000	0.000	0.000
#resp_5	NA	NA	NA	NA	0.978	0.908	0.787	0.630	0.465	0.316	0.197	0.113	0.059	0.028	0.012	0.005	0.002	0.000	0.000	0.000
#resp_6	NA	NA	NA	NA	NA	0.989	0.949	0.865	0.741	0.589	0.434	0.295	0.185	0.106	0.055	0.026	0.011	0.004	0.001	0.000
#resp_7	NA	NA	NA	NA	NA	NA	0.995	0.972	0.919	0.827	0.700	0.553	0.406	0.275	0.171	0.097	0.049	0.023	0.009	0.003
#resp_8	NA	NA	NA	NA	NA	NA	NA	0.998	0.986	0.953	0.890	0.792	0.664	0.521	0.379	0.254	0.156	0.086	0.043	0.019
#resp_9	NA	NA	NA	NA	NA	NA	NA	NA	0.999	0.993	0.975	0.934	0.863	0.760	0.631	0.490	0.352	0.233	0.140	0.075
#resp_10	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.997	0.987	0.962	0.914	0.837	0.730	0.600	0.460	0.326	0.210
#resp_11	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.999	0.994	0.980	0.950	0.896	0.813	0.702	0.570	0.430
#resp_12	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.999	0.997	0.990	0.972	0.937	0.878	0.790	0.674
#resp_13	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	0.999	0.995	0.985	0.964	0.925	0.860
#resp_14	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	0.999	0.998	0.993	0.981	0.957
#resp_15	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	1.000	0.999	0.997	0.991
#resp_16	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	1.000	1.000	0.999
#resp_17	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	1.000	1.000
#resp_18	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	1.000
#resp_19	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000
#resp_20	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000

Based on Posterior Probability

eff_res <- matrix(NA, nrow = n1 + 1, ncol = n1)
colnames(eff_res) <- paste0("enroll_", seq(n1))
rownames(eff_res) <- paste0("#resp_", seq(n1 + 1) - 1)

fut_res <- matrix(NA, nrow = n1 + 1, ncol = n1)
colnames(fut_res) <- paste0("enroll_", seq(n1))
rownames(fut_res) <- paste0("#resp_", seq(n1 + 1) - 1)

for(enroll_num in seq(n1)){
    for(row_idx in seq(from = 1, to = enroll_num + 1)){
        resp_num <- row_idx - 1
        post_prob <- gonogo:::IA_post(n = enroll_num, m = resp_num,
                                      eff_cut = eff_cut, fut_cut = fut_cut)
        eff_res[row_idx, enroll_num] <- post_prob[1]
        fut_res[row_idx, enroll_num] <- post_prob[2]
    }
}

Posterior probability for efficacy: Pr(ORR > 0.55| Data)

knitr::kable(round(eff_res, digits = 3))

	enroll_1	enroll_2	enroll_3	enroll_4	enroll_5	enroll_6	enroll_7	enroll_8	enroll_9	enroll_10	enroll_11	enroll_12	enroll_13	enroll_14	enroll_15	enroll_16	enroll_17	enroll_18	enroll_19	enroll_20
#resp_0	0.202	0.091	0.041	0.018	0.008	0.004	0.002	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
#resp_1	0.698	0.425	0.241	0.131	0.069	0.036	0.018	0.009	0.005	0.002	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
#resp_2	NA	0.834	0.609	0.407	0.255	0.153	0.088	0.050	0.027	0.015	0.008	0.004	0.002	0.001	0.001	0.000	0.000	0.000	0.000	0.000
#resp_3	NA	NA	0.908	0.744	0.558	0.392	0.260	0.166	0.102	0.061	0.036	0.020	0.011	0.006	0.003	0.002	0.001	0.001	0.000	0.000
#resp_4	NA	NA	NA	0.950	0.836	0.684	0.523	0.379	0.262	0.174	0.112	0.070	0.043	0.025	0.015	0.009	0.005	0.003	0.002	0.001
#resp_5	NA	NA	NA	NA	0.972	0.898	0.780	0.639	0.496	0.367	0.261	0.179	0.119	0.077	0.049	0.030	0.018	0.011	0.006	0.004
#resp_6	NA	NA	NA	NA	NA	0.985	0.937	0.850	0.734	0.603	0.473	0.356	0.259	0.182	0.124	0.083	0.054	0.034	0.021	0.013
#resp_7	NA	NA	NA	NA	NA	NA	0.992	0.961	0.900	0.809	0.696	0.573	0.454	0.346	0.256	0.183	0.128	0.087	0.058	0.038
#resp_8	NA	NA	NA	NA	NA	NA	NA	0.995	0.977	0.935	0.866	0.772	0.663	0.548	0.437	0.337	0.253	0.184	0.131	0.091
#resp_9	NA	NA	NA	NA	NA	NA	NA	NA	0.997	0.986	0.958	0.907	0.833	0.739	0.634	0.526	0.422	0.329	0.249	0.184
#resp_10	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.999	0.992	0.973	0.937	0.880	0.802	0.710	0.609	0.506	0.409	0.321
#resp_11	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.999	0.995	0.983	0.958	0.915	0.853	0.774	0.683	0.586	0.488
#resp_12	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.997	0.989	0.972	0.940	0.892	0.827	0.748	0.659
#resp_13	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.998	0.993	0.982	0.959	0.922	0.870	0.803
#resp_14	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.999	0.996	0.988	0.972	0.945	0.904
#resp_15	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	0.999	0.997	0.992	0.981	0.961
#resp_16	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	0.998	0.995	0.987
#resp_17	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	0.999	0.997
#resp_18	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000	0.999
#resp_19	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000	1.000
#resp_20	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	1.000

Posterior probability for futility: Pr(ORR <= 0.45| Data)

knitr::kable(round(fut_res, digits = 3))

	enroll_1	enroll_2	enroll_3	enroll_4	enroll_5	enroll_6	enroll_7	enroll_8	enroll_9	enroll_10	enroll_11	enroll_12	enroll_13	enroll_14	enroll_15	enroll_16	enroll_17	enroll_18	enroll_19	enroll_20
#resp_0	0.698	0.834	0.908	0.950	0.972	0.985	0.992	0.995	0.997	0.999	0.999	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000
#resp_1	0.202	0.425	0.609	0.744	0.836	0.898	0.937	0.961	0.977	0.986	0.992	0.995	0.997	0.998	0.999	0.999	1.000	1.000	1.000	1.000
#resp_2	NA	0.091	0.241	0.407	0.558	0.684	0.780	0.850	0.900	0.935	0.958	0.973	0.983	0.989	0.993	0.996	0.997	0.998	0.999	0.999
#resp_3	NA	NA	0.041	0.131	0.255	0.392	0.523	0.639	0.734	0.809	0.866	0.907	0.937	0.958	0.972	0.982	0.988	0.992	0.995	0.997
#resp_4	NA	NA	NA	0.018	0.069	0.153	0.260	0.379	0.496	0.603	0.696	0.772	0.833	0.880	0.915	0.940	0.959	0.972	0.981	0.987
#resp_5	NA	NA	NA	NA	0.008	0.036	0.088	0.166	0.262	0.367	0.473	0.573	0.663	0.739	0.802	0.853	0.892	0.922	0.945	0.961
#resp_6	NA	NA	NA	NA	NA	0.004	0.018	0.050	0.102	0.174	0.261	0.356	0.454	0.548	0.634	0.710	0.774	0.827	0.870	0.904
#resp_7	NA	NA	NA	NA	NA	NA	0.002	0.009	0.027	0.061	0.112	0.179	0.259	0.346	0.437	0.526	0.609	0.683	0.748	0.803
#resp_8	NA	NA	NA	NA	NA	NA	NA	0.001	0.005	0.015	0.036	0.070	0.119	0.182	0.256	0.337	0.422	0.506	0.586	0.659
#resp_9	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.002	0.008	0.020	0.043	0.077	0.124	0.183	0.253	0.329	0.409	0.488
#resp_10	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.001	0.004	0.011	0.025	0.049	0.083	0.128	0.184	0.249	0.321
#resp_11	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.001	0.002	0.006	0.015	0.030	0.054	0.087	0.131	0.184
#resp_12	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.001	0.003	0.009	0.018	0.034	0.058	0.091
#resp_13	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.001	0.002	0.005	0.011	0.021	0.038
#resp_14	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.000	0.001	0.003	0.006	0.013
#resp_15	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.000	0.001	0.002	0.004
#resp_16	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.000	0.000	0.001
#resp_17	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.000	0.000
#resp_18	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000	0.000
#resp_19	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000	0.000
#resp_20	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	0.000

Final Analysis

We can also list all possible results at final analysis

m_vec <- 0 : nmax
res <- BM_Res(nmax = nmax, n1 = nmax, m = m_vec,
              pt = fa_eff_pt, theta0 = eff_cut,
              eff_cut = eff_cut, fut_cut = fut_cut,
              a = 1, b = 1)

knitr::kable(format(res, visable = FALSE))

nmax	n1	ORR	CI	Post_mean	HDI	Go_pprob	Nogo_pprob	Pred_prob
40	40	0(0.00)	0.00 - 0.09	0.02	0.00 - 0.07	0.0%	100.0%	NA
40	40	1(0.03)	0.00 - 0.13	0.05	0.00 - 0.11	0.0%	100.0%	NA
40	40	2(0.05)	0.01 - 0.17	0.07	0.01 - 0.15	0.0%	100.0%	NA
40	40	3(0.07)	0.02 - 0.20	0.10	0.02 - 0.18	0.0%	100.0%	NA
40	40	4(0.10)	0.03 - 0.24	0.12	0.03 - 0.22	0.0%	100.0%	NA
40	40	5(0.12)	0.04 - 0.27	0.14	0.05 - 0.25	0.0%	100.0%	NA
40	40	6(0.15)	0.06 - 0.30	0.17	0.06 - 0.28	0.0%	100.0%	NA
40	40	7(0.17)	0.07 - 0.33	0.19	0.08 - 0.31	0.0%	100.0%	NA
40	40	8(0.20)	0.09 - 0.36	0.21	0.10 - 0.34	0.0%	99.9%	NA
40	40	9(0.23)	0.11 - 0.38	0.24	0.12 - 0.37	0.0%	99.8%	NA
40	40	10(0.25)	0.13 - 0.41	0.26	0.13 - 0.40	0.0%	99.5%	NA
40	40	11(0.28)	0.15 - 0.44	0.29	0.15 - 0.42	0.0%	98.7%	NA
40	40	12(0.30)	0.17 - 0.47	0.31	0.17 - 0.45	0.1%	97.1%	NA
40	40	13(0.33)	0.19 - 0.49	0.33	0.19 - 0.48	0.2%	94.1%	NA
40	40	14(0.35)	0.21 - 0.52	0.36	0.22 - 0.50	0.6%	89.3%	NA
40	40	15(0.38)	0.23 - 0.54	0.38	0.24 - 0.53	1.4%	82.3%	NA
40	40	16(0.40)	0.25 - 0.57	0.40	0.26 - 0.55	2.9%	72.8%	NA
40	40	17(0.42)	0.27 - 0.59	0.43	0.28 - 0.58	5.7%	61.5%	NA
40	40	18(0.45)	0.29 - 0.62	0.45	0.30 - 0.60	10.2%	49.2%	NA
40	40	19(0.47)	0.32 - 0.64	0.48	0.33 - 0.63	16.9%	36.9%	NA
40	40	20(0.50)	0.34 - 0.66	0.50	0.35 - 0.65	25.9%	25.9%	NA
40	40	21(0.53)	0.36 - 0.68	0.52	0.37 - 0.67	36.9%	16.9%	NA
40	40	22(0.55)	0.38 - 0.71	0.55	0.40 - 0.70	49.2%	10.2%	NA
40	40	23(0.57)	0.41 - 0.73	0.57	0.42 - 0.72	61.5%	5.7%	NA
40	40	24(0.60)	0.43 - 0.75	0.60	0.45 - 0.74	72.8%	2.9%	NA
40	40	25(0.62)	0.46 - 0.77	0.62	0.47 - 0.76	82.3%	1.4%	NA
40	40	26(0.65)	0.48 - 0.79	0.64	0.50 - 0.78	89.3%	0.6%	NA
40	40	27(0.68)	0.51 - 0.81	0.67	0.52 - 0.81	94.1%	0.2%	NA
40	40	28(0.70)	0.53 - 0.83	0.69	0.55 - 0.83	97.1%	0.1%	NA
40	40	29(0.72)	0.56 - 0.85	0.71	0.58 - 0.85	98.7%	0.0%	NA
40	40	30(0.75)	0.59 - 0.87	0.74	0.60 - 0.87	99.5%	0.0%	NA
40	40	31(0.78)	0.62 - 0.89	0.76	0.63 - 0.88	99.8%	0.0%	NA
40	40	32(0.80)	0.64 - 0.91	0.79	0.66 - 0.90	99.9%	0.0%	NA
40	40	33(0.82)	0.67 - 0.93	0.81	0.69 - 0.92	100.0%	0.0%	NA
40	40	34(0.85)	0.70 - 0.94	0.83	0.72 - 0.94	100.0%	0.0%	NA
40	40	35(0.88)	0.73 - 0.96	0.86	0.75 - 0.95	100.0%	0.0%	NA
40	40	36(0.90)	0.76 - 0.97	0.88	0.78 - 0.97	100.0%	0.0%	NA
40	40	37(0.93)	0.80 - 0.98	0.90	0.82 - 0.98	100.0%	0.0%	NA
40	40	38(0.95)	0.83 - 0.99	0.93	0.85 - 0.99	100.0%	0.0%	NA
40	40	39(0.97)	0.87 - 1.00	0.95	0.89 - 1.00	100.0%	0.0%	NA
40	40	40(1.00)	0.91 - 1.00	0.98	0.93 - 1.00	100.0%	0.0%	NA

Note: Here we list all possible results, even those should have been stopped at interim analysis.

fa_rules <- Find_Cut(
    nmax = nmax, n1 = nmax, m = m,
    pt = fa_eff_pt, theta0 = eff_cut,
    eff_cut = eff_cut, fut_cut = fut_cut,
    eff_pt = fa_eff_pt, fut_pt = fa_fut_pt,
    a = 1, b = 1
)

If we set the rules to Go if posterior Pr(ORR > 0.55) is greater than 0.6 and to Nogo if posterior Pr(ORR <= 0.45) is less than 0.5. Then we can determine the cut value for Go/Nogo as:

Declare Go if #resp is equal to or greater than 23, which means observed ORR >= 0.58, posterior probability Pr(ORR > 0.55 | Data) >= 61.5%.
Declare Nogo if #resp is equal to or less than 17 which means observed ORR <= 0.42, posterior probability Pr(ORR < 0.45 | Data) >= 61.5%.

Given this rule, we can compute the operating characteristics (OC) table for various observed ORR

oc_tab_s2 <- t(sapply(theta_pick, function(orr, n, go_cut, nogo_cut){
    res <- ORR_Go_Nogo(n = n, orr = orr, go_cut = go_cut, nogo_cut = nogo_cut)
    res <- format(res, visable = FALSE)
},
n = nmax,
go_cut = as.integer(fa_rules["go_cut"]),
nogo_cut = as.integer(fa_rules["nogo_cut"])))

knitr::kable(oc_tab_s2)

Underlying_ORR	Pr_Go	Pr_Nogo	Pr_Equivocal
45.00%	7.7%	43.9%	48.4%
50.00%	21.5%	21.5%	57.0%
55.00%	43.9%	7.7%	48.4%
60.00%	68.9%	1.9%	29.3%

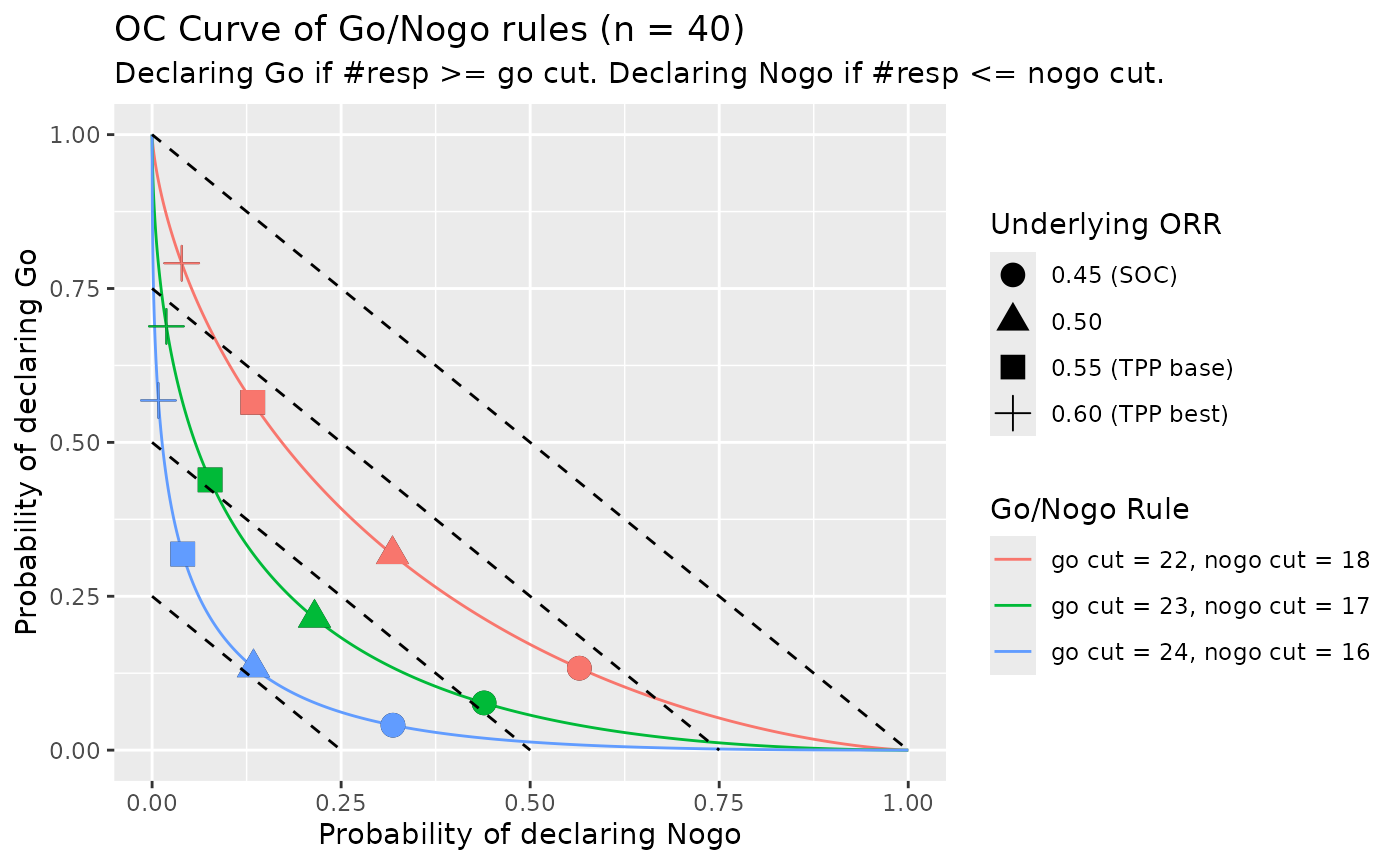

We can also show OC figures of different rules

rules <- data.frame(
    gocut = c(fa_rules["go_cut"] - 1, fa_rules["go_cut"] + 1),
    nogocut = c(fa_rules["nogo_cut"] + 1, fa_rules["nogo_cut"] - 1),
    n = nmax
) %>%
    mutate(nogocut = if_else(
        nogocut < gocut, nogocut, gocut - 1
    )) %>%
    bind_rows(
        data.frame(
            gocut = fa_rules["go_cut"],
            nogocut = fa_rules["nogo_cut"],
            n = nmax)) %>%
    distinct() %>%
    arrange(gocut)

oc_fig_s2 <- OC_Curve_Diff_Rules(rules, theta_pick,
                                 tpp_tb = tpp_tb,
                                 plot_params = list(
                                     contour_vec = seq(from = 0.25, to = 1, by = 0.25)))
oc_fig_s2

Figures for Confidence Given Different Rules

x <- seq(0, 1, by = 0.01)

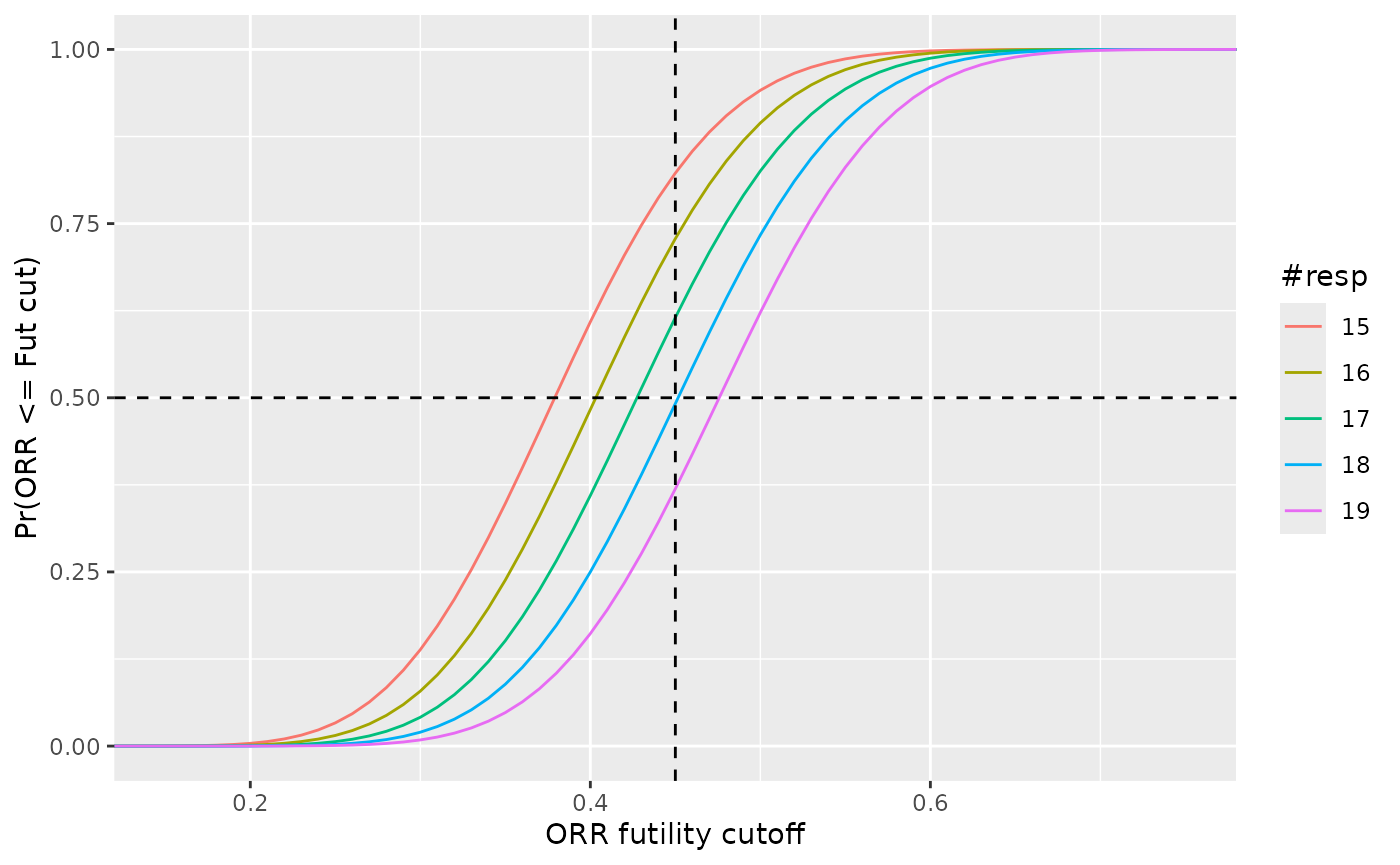

# Nogo rules
res <- list()
for(i in fa_rules["nogo_cut"] +  (-2 : 2)){
    cdf <- pbeta(x, 1 + i, 1 + nmax - i, lower.tail = TRUE)
    res <- append(res,
                  list(data.frame(ORR = x,
                                  cdf = cdf,
                                  resp = i)))
}
res <- do.call(rbind, res)
ggplot(res, aes(x = ORR, y = cdf, color = factor(resp))) +
    geom_line() +
    geom_vline(xintercept = fut_cut, linetype = "dashed") +
    geom_hline(yintercept = fa_fut_pt, linetype = "dashed") +
    labs(
        x = "ORR futility cutoff",
        y = "Pr(ORR <= Fut cut)",
        color = "#resp") +
    coord_cartesian(xlim = c(max(0, fut_cut - 0.3),
                             min(1, fut_cut + 0.3)))


# Go rules
res <- list()
for(i in fa_rules["go_cut"] +  (-2 : 2)){
    cdf <- pbeta(x, 1 + i, 1 + nmax - i, lower.tail = FALSE)
    res <- append(res,
                  list(data.frame(ORR = x,
                                  cdf = cdf,
                                  resp = i)))
}
res <- do.call(rbind, res)
ggplot(res, aes(x = ORR, y = cdf, color = factor(resp))) +
    geom_line() +
    geom_vline(xintercept = eff_cut, linetype = "dashed") +
    geom_hline(yintercept = fa_eff_pt, linetype = "dashed") +
    labs(
        x = "ORR efficacy cutoff",
        y = "Pr(ORR > Eff cut)",
        color = "#resp") +
    coord_cartesian(xlim = c(max(0, eff_cut - 0.3), min(1, eff_cut + 0.3)))

Appendix

Session info

#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 4.4.1 (2024-06-14)
#>  os       Ubuntu 22.04.4 LTS
#>  system   x86_64, linux-gnu
#>  ui       X11
#>  language en
#>  collate  C.UTF-8
#>  ctype    C.UTF-8
#>  tz       UTC
#>  date     2024-06-24
#>  pandoc   3.1.11 @ /opt/hostedtoolcache/pandoc/3.1.11/x64/ (via rmarkdown)
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version    date (UTC) lib source
#>  bayestestR    0.13.2     2024-02-12 [1] RSPM
#>  bslib         0.7.0      2024-03-29 [1] RSPM
#>  cachem        1.1.0      2024-05-16 [1] RSPM
#>  cli           3.6.3      2024-06-21 [1] RSPM
#>  colorspace    2.1-0      2023-01-23 [1] RSPM
#>  desc          1.4.3      2023-12-10 [1] RSPM
#>  digest        0.6.35     2024-03-11 [1] RSPM
#>  dplyr       * 1.1.4      2023-11-17 [1] RSPM
#>  evaluate      0.24.0     2024-06-10 [1] RSPM
#>  fansi         1.0.6      2023-12-08 [1] RSPM
#>  farver        2.1.2      2024-05-13 [1] RSPM
#>  fastmap       1.2.0      2024-05-15 [1] RSPM
#>  fs            1.6.4      2024-04-25 [1] RSPM
#>  generics      0.1.3      2022-07-05 [1] RSPM
#>  ggplot2     * 3.5.1      2024-04-23 [1] RSPM
#>  glue          1.7.0      2024-01-09 [1] RSPM
#>  gonogo      * 0.0.0.9024 2024-06-24 [1] local
#>  gtable        0.3.5      2024-04-22 [1] RSPM
#>  highr         0.11       2024-05-26 [1] RSPM
#>  htmltools     0.5.8.1    2024-04-04 [1] RSPM
#>  insight       0.20.1     2024-06-11 [1] RSPM
#>  jquerylib     0.1.4      2021-04-26 [1] RSPM
#>  jsonlite      1.8.8      2023-12-04 [1] RSPM
#>  knitr         1.47       2024-05-29 [1] RSPM
#>  labeling      0.4.3      2023-08-29 [1] RSPM
#>  lifecycle     1.0.4      2023-11-07 [1] RSPM
#>  magrittr      2.0.3      2022-03-30 [1] RSPM
#>  memoise       2.0.1      2021-11-26 [1] RSPM
#>  munsell       0.5.1      2024-04-01 [1] RSPM
#>  pillar        1.9.0      2023-03-22 [1] RSPM
#>  pkgconfig     2.0.3      2019-09-22 [1] RSPM
#>  pkgdown       2.0.9      2024-04-18 [1] any (@2.0.9)
#>  purrr         1.0.2      2023-08-10 [1] RSPM
#>  quadprog      1.5-8      2019-11-20 [1] RSPM
#>  R6            2.5.1      2021-08-19 [1] RSPM
#>  ragg          1.3.2      2024-05-15 [1] RSPM
#>  rlang         1.1.4      2024-06-04 [1] RSPM
#>  rmarkdown     2.27       2024-05-17 [1] RSPM
#>  sass          0.4.9      2024-03-15 [1] RSPM
#>  scales        1.3.0      2023-11-28 [1] RSPM
#>  sessioninfo   1.2.2      2021-12-06 [1] RSPM
#>  stringi       1.8.4      2024-05-06 [1] RSPM
#>  stringr       1.5.1      2023-11-14 [1] RSPM
#>  systemfonts   1.1.0      2024-05-15 [1] RSPM
#>  textshaping   0.4.0      2024-05-24 [1] RSPM
#>  tibble        3.2.1      2023-03-20 [1] RSPM
#>  tidyr         1.3.1      2024-01-24 [1] RSPM
#>  tidyselect    1.2.1      2024-03-11 [1] RSPM
#>  utf8          1.2.4      2023-10-22 [1] RSPM
#>  vctrs         0.6.5      2023-12-01 [1] RSPM
#>  withr         3.0.0      2024-01-16 [1] RSPM
#>  xfun          0.45       2024-06-16 [1] RSPM
#>  yaml          2.3.8      2023-12-11 [1] RSPM
#>
#>  [1] /home/runner/work/_temp/Library
#>  [2] /opt/R/4.4.1/lib/R/site-library
#>  [3] /opt/R/4.4.1/lib/R/library
#>
#> ──────────────────────────────────────────────────────────────────────────────
